Example Task Shapes and Scoring

Updated to use 2007 Season Shape factors


Generated: 03/01/2007 20:25:52

(With thanks to David Masson)



Example 1: A 500k triangle

Task: GRL-WEB-STA-GRL

Notes: This example is to show the wide variety of scoring possibilities; declared/not, completed/not and at a variety of speeds. As these have the same relative values (in most circumstances), most of the rest of the examples only show scorings for tasks declared and completed at 100kph in a glider with a handicap of 100.


Task distance: 502.2km
- Leg 1 174.1km 34.7% of total
- Leg 2 172.7km 34.4% of total
- Leg 3 155.4km 30.9% of total
Convex hull (marked in cyan):
502.2km 100.0% of total
Longest FAI triangle (marked in yellow):
502.2km 100.0% of total

Example Scorings

Shape Factor, SF = 1.080 (basis: 28% Triangle)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 502.2 50.0 = 2983 (2712+0+271)
Yes 1.00 Yes 1.10 100 502.2 60.0 = 3281 (2712+271+298)
Yes 1.00 Yes 1.10 100 502.2 70.0 = 3580 (2712+542+325)
Yes 1.00 Yes 1.10 100 502.2 80.0 = 3878 (2712+814+353)
Yes 1.00 Yes 1.10 100 502.2 90.0 = 4176 (2712+1085+380)
Yes 1.00 Yes 1.10 100 502.2 100.0 = 4475 (2712+1356+407)
Yes 1.00 Yes 1.10 100 502.2 110.0 = 4773 (2712+1627+434)
Yes 1.00 Yes 1.10 100 502.2 120.0 = 5071 (2712+1898+461)
Yes 1.00 Yes 1.10 100 502.2 130.0 = 5370 (2712+2170+488)
Yes 1.00 No(80% complete) 1.00 100 401.8 100.0 = 3037 (2170+868+0)
No 0.60 Yes 1.10 100 502.2 100.0 = 2685 (1627+814+244)
No 0.60 No(80% complete) 1.00 100 401.8 100.0 = 1822 (1302+521+0)




Example 2: A 28% triangle

Task: LAS-HEC-ELY-LAS

Notes: The 28% triangle still gives the best shape factor of any task.


Task distance: 519.7km
- Leg 1 151.1km 29.1% of total
- Leg 2 207.1km 39.9% of total
- Leg 3 161.4km 31.1% of total
Convex hull (marked in cyan):
519.7km 100.0% of total
Longest FAI triangle (marked in yellow):
519.7km 100.0% of total

Example Scorings

Shape Factor, SF = 1.080 (basis: 28% Triangle)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 519.7 100.0 = 4630 (2806+1403+421)




Example 3: But doglegs are allowed

Task: LAS-HEC-ELY-CAL-LAS

Notes: Same triangle but with dogleg. Doglegs of up to 5% of the total task distance are allowed with no penalty. Your distance and speed are calculated from the actual declared distance, not the triangular distance. The way to pick these tasks is to 1) pick the triangle, 2) add the doglegs ensuring they add no more than 5% to the task. Having declared the extra turning point you must, of course, go round it. The introduction of the ability to dogleg is primarily to ease task setting around airspace, but you may be able to use them to your advantage in other ways. If you want to go for records, remember it is the triangle that counts (ie. in this case it is a 519.7k triangle).


Task distance: 541.9km
- Leg 1 151.1km 27.9% of total
- Leg 2 207.1km 38.2% of total
- Leg 3 101.9km 18.8% of total
- Leg 4 81.8km 15.1% of total
Convex hull (marked in cyan):
519.7km 95.9% of total
Longest FAI triangle (marked in yellow):
519.7km 95.9% of total

Example Scorings

Shape Factor, SF = 1.080 (basis: 28% Triangle)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 541.9 100.0 = 4829 (2927+1463+439)




Example 4: The dogleg(s) may include the start/finish

Task: LAS-LSS-BUL-CHA-HUS-LAS

Notes: This 28% triangle has two doglegs, one of which includes the start/finish. The qualifying triangle is LSS-CHA-HUS-LSS.


Task distance: 527.1km
- Leg 1 17.1km 3.2% of total
- Leg 2 33.3km 6.3% of total
- Leg 3 118.6km 22.5% of total
- Leg 4 218.9km 41.5% of total
- Leg 5 139.2km 26.4% of total
Convex hull (marked in cyan):
519.1km 98.5% of total
Longest FAI triangle (marked in yellow):
519.1km 98.5% of total

Example Scorings

Shape Factor, SF = 1.080 (basis: 28% Triangle)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 527.1 100.0 = 4697 (2846+1423+427)




Example 5: A 25/45% triangle

Task: LAS-PAR-RAD-BRI-LAS

Notes: 25/45 triangles have a good shape factor, but less than 28% triangles. This shape factor is now applied regardless of the task length. In other words, a 750k, 28% triangle is considered better than a 750k, 25/45 triangle and scores more highly (but good luck in finding one!).


Task distance: 506.1km
- Leg 1 49.1km 9.7% of total
- Leg 2 141.3km 27.9% of total
- Leg 3 138.9km 27.4% of total
- Leg 4 176.8km 34.9% of total
Convex hull (marked in cyan):
503.5km 99.5% of total
Longest FAI triangle (marked in yellow):
503.5km 99.5% of total

Example Scorings

Shape Factor, SF = 1.050 (basis: 25/45 Triangle)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 506.1 100.0 = 4384 (2657+1328+399)




Example 6: Not quite a 25/45 triangle

Task: WAS-BAT-BRI-WAS

Notes: This triangle is not quite a 25/45 triangle and is scored on the 'normal' basis. The normal basis is based on the ratio of the task distance to the length of the 'Convex hull' containing the task points. These are scaled to give shape factors in the range 0.82 to 1.00. By definition, convex task shapes get the best shape factor. These include out-and-returns, non-FAI triangles, squares. More examples follow...


Task distance: 501.3km
- Leg 1 150.7km 30.1% of total
- Leg 2 123.4km 24.6% of total
- Leg 3 227.3km 45.3% of total
Convex hull (marked in cyan):
501.3km 100.0% of total
Longest FAI triangle (marked in yellow):
n/a

Example Scorings

Shape Factor, SF = 1.000 (basis: Normal)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 501.3 100.0 = 4136 (2507+1253+376)




Example 7: Another triangle

Task: LAS-SAL-NOR-LAS

Notes: A relatively long/thin triangle.


Task distance: 400.6km
- Leg 1 55.3km 13.8% of total
- Leg 2 190.6km 47.6% of total
- Leg 3 154.7km 38.6% of total
Convex hull (marked in cyan):
400.6km 100.0% of total
Longest FAI triangle (marked in yellow):
n/a

Example Scorings

Shape Factor, SF = 1.000 (basis: Normal)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 400.6 100.0 = 3305 (2003+1002+300)




Example 8: Out-and-return

Task: LAS-DON-LAS

Notes: Out and return


Task distance: 509.6km
- Leg 1 254.8km 50.0% of total
- Leg 2 254.8km 50.0% of total
Convex hull (marked in cyan):
509.6km 100.0% of total
Longest FAI triangle (marked in yellow):
n/a

Example Scorings

Shape Factor, SF = 1.000 (basis: Normal)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 509.6 100.0 = 4204 (2548+1274+382)




Example 9: Convex quadrilateral

Task: LAS-RAD-BUG-TOW-LAS

Notes: An concave quadrilateral


Task distance: 406.5km
- Leg 1 96.7km 23.8% of total
- Leg 2 94.5km 23.2% of total
- Leg 3 109.5km 26.9% of total
- Leg 4 105.7km 26.0% of total
Convex hull (marked in cyan):
406.5km 100.0% of total
Longest FAI triangle (marked in yellow):
365.0km 89.8% of total

Example Scorings

Shape Factor, SF = 1.000 (basis: Normal)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 406.5 100.0 = 3353 (2032+1016+305)




Example 10: Around the LTMA!

Task: LAS-HVT-RYE-RAT-SIL-LAS

Notes: A polygon around the LTMA


Task distance: 521.5km
- Leg 1 34.9km 6.7% of total
- Leg 2 123.5km 23.7% of total
- Leg 3 135.4km 26.0% of total
- Leg 4 129.4km 24.8% of total
- Leg 5 98.3km 18.8% of total
Convex hull (marked in cyan):
521.5km 100.0% of total
Longest FAI triangle (marked in yellow):
457.2km 87.7% of total

Example Scorings

Shape Factor, SF = 1.000 (basis: Normal)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 521.5 100.0 = 4303 (2608+1304+391)




Example 11: Out-and-return with doglegs

Task: LAS-MET-DON-SBY-LAS

Notes: Little doglegs make little difference to the shape factor.


Task distance: 518.5km
- Leg 1 175.1km 33.8% of total
- Leg 2 81.8km 15.8% of total
- Leg 3 77.9km 15.0% of total
- Leg 4 183.6km 35.4% of total
Convex hull (marked in cyan):
516.4km 99.6% of total
Longest FAI triangle (marked in yellow):
n/a

Example Scorings

Shape Factor, SF = 0.999 (basis: Normal)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 518.5 100.0 = 4271 (2589+1294+388)




Example 12: A convex quadrilateral

Task: LAS-ENS-HEC-NOS-LAS

Notes: This had a slightly lower shape factor because of the dogleg that cuts inside the outer shape.


Task distance: 413.0km
- Leg 1 86.8km 21.0% of total
- Leg 2 89.4km 21.7% of total
- Leg 3 125.5km 30.4% of total
- Leg 4 111.2km 26.9% of total
Convex hull (marked in cyan):
387.9km 93.9% of total
Longest FAI triangle (marked in yellow):
387.9km 93.9% of total

Example Scorings

Shape Factor, SF = 0.978 (basis: Normal)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 413.0 100.0 = 3332 (2020+1010+303)




Example 13: A more convex quadrilateral

Task: LAS-DED-AST-HUS-LAS

Notes: And this one is even lower.


Task distance: 403.8km
- Leg 1 90.5km 22.4% of total
- Leg 2 63.6km 15.8% of total
- Leg 3 110.5km 27.4% of total
- Leg 4 139.2km 34.5% of total
Convex hull (marked in cyan):
345.3km 85.5% of total
Longest FAI triangle (marked in yellow):
345.3km 85.5% of total

Example Scorings

Shape Factor, SF = 0.948 (basis: Normal)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 403.8 100.0 = 3157 (1914+957+287)




Example 14: Pure double out-and-return

Task: LAS-WAT-LAS-WAT-LAS

Notes: The pure double out and return gives the worst shape factor of any task.


Task distance: 498.8km
- Leg 1 124.7km 25.0% of total
- Leg 2 124.7km 25.0% of total
- Leg 3 124.7km 25.0% of total
- Leg 4 124.7km 25.0% of total
Convex hull (marked in cyan):
249.4km 50.0% of total
Longest FAI triangle (marked in yellow):
n/a

Example Scorings

Shape Factor, SF = 0.820 (basis: Normal)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 498.8 100.0 = 3374 (2045+1022+307)




Example 15: Long/short out-and-return

Task: LAS-LEI-POP-SIL-LAS

Notes: The shape factor for this is not so bad because the long leg increases the size of the enclosing shape - and you have flown over a bigger area.


Task distance: 513.2km
- Leg 1 159.4km 31.1% of total
- Leg 2 157.7km 30.7% of total
- Leg 3 97.8km 19.1% of total
- Leg 4 98.3km 19.2% of total
Convex hull (marked in cyan):
329.4km 64.2% of total
Longest FAI triangle (marked in yellow):
n/a

Example Scorings

Shape Factor, SF = 0.871 (basis: Normal)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 513.2 100.0 = 3688 (2235+1118+335)




Example 16: Bowtie

Task: LAS-LED-HES-SIL-LAS

Notes: A bow tie shaped task has a medium shape factor, because the effect of the bow-tie is to reduce the area you fly over.


Task distance: 507.9km
- Leg 1 136.0km 26.8% of total
- Leg 2 118.4km 23.3% of total
- Leg 3 155.2km 30.6% of total
- Leg 4 98.3km 19.4% of total
Convex hull (marked in cyan):
413.2km 81.3% of total
Longest FAI triangle (marked in yellow):
371.6km 73.2% of total

Example Scorings

Shape Factor, SF = 0.933 (basis: Normal)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 507.9 100.0 = 3909 (2369+1185+355)




Example 17: Goal flights

Task: LAS-PER

Notes: Goal flights have a fixed shape factor, regardless of their shape. A goal flight (or non-closed circuit) is defined as the finish point not being within 10km of the start point.


Task distance: 308.0km
- Leg 1 308.0km 100.0% of total
Convex hull (marked in cyan):
616.0km 200.0% of total
Longest FAI triangle (marked in yellow):
n/a

Example Scorings

Shape Factor, SF = 0.820 (basis: Goal)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 308.0 100.0 = 2084 (1263+631+189)




Example 18: Dogleg goal

Task: LAS-SHP-TIB

Notes: It's a goal flight, so fixed shape factor


Task distance: 303.7km
- Leg 1 109.1km 35.9% of total
- Leg 2 194.6km 64.1% of total
Convex hull (marked in cyan):
510.5km 168.1% of total
Longest FAI triangle (marked in yellow):
n/a

Example Scorings

Shape Factor, SF = 0.820 (basis: Goal)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 303.7 100.0 = 2055 (1245+623+187)




Example 19: Even this is a goal flight

Task: LAS-HUS-CHA-POP

Notes: The finish is 10.5km away from the start, so it counts as a goal flight. If you did this as an undeclared flight you would not get your completion bonus because undeclared flights are not considered complete unless they are closed cicuit.


Task distance: 487.4km
- Leg 1 139.2km 28.6% of total
- Leg 2 218.9km 44.9% of total
- Leg 3 129.4km 26.5% of total
Convex hull (marked in cyan):
497.9km 102.1% of total
Longest FAI triangle (marked in yellow):
497.9km 102.1% of total

Example Scorings

Shape Factor, SF = 0.820 (basis: Goal)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 487.4 100.0 = 3297 (1998+999+300)




Example 20: A big flight

Task: LAS-LAU-BUL-NHL-LAS

Notes: This shows that, even if you attempt bigs tasks and complete them you will get very good points. If you don't complete, but cover a lot of distance you will get fairly good points; you don't get your bonus points, your speed points are devalued depending on how much of the task you completed, but you get full credit for the declared distance you have flown.


Task distance: 764.5km
- Leg 1 241.5km 31.6% of total
- Leg 2 220.3km 28.8% of total
- Leg 3 140.8km 18.4% of total
- Leg 4 162.0km 21.2% of total
Convex hull (marked in cyan):
483.3km 63.2% of total
Longest FAI triangle (marked in yellow):
n/a

Example Scorings

Shape Factor, SF = 0.868 (basis: Normal)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 No(50% complete) 1.00 100 382.3 100.0 = 2073 (1658+415+0)
Yes 1.00 No(60% complete) 1.00 100 458.7 100.0 = 2587 (1990+597+0)
Yes 1.00 No(70% complete) 1.00 100 535.2 100.0 = 3134 (2322+813+0)
Yes 1.00 No(80% complete) 1.00 100 611.6 100.0 = 3715 (2653+1061+0)
Yes 1.00 No(90% complete) 1.00 100 688.1 100.0 = 4328 (2985+1343+0)
Yes 1.00 No(99% complete) 1.00 100 756.9 100.0 = 4909 (3283+1625+0)
Yes 1.00 Yes 1.10 100 764.5 100.0 = 5472 (3317+1658+497)

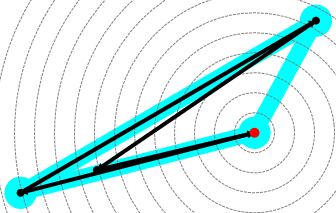

Example 21: A huge flight

Task: LAS-LAU-GRL-NHL-LAS

Notes: Same comments, but values for a 1000k attempt.


Task distance: 1010.6km
- Leg 1 241.5km 23.9% of total
- Leg 2 341.9km 33.8% of total
- Leg 3 265.2km 26.2% of total
- Leg 4 162.0km 16.0% of total
Convex hull (marked in cyan):
711.2km 70.4% of total
Longest FAI triangle (marked in yellow):
n/a

Example Scorings

Shape Factor, SF = 0.893 (basis: Normal)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 No(50% complete) 1.00 100 505.3 100.0 = 2821 (2257+564+0)
Yes 1.00 No(60% complete) 1.00 100 606.4 100.0 = 3521 (2708+813+0)
Yes 1.00 No(70% complete) 1.00 100 707.4 100.0 = 4266 (3160+1106+0)
Yes 1.00 No(80% complete) 1.00 100 808.5 100.0 = 5056 (3611+1445+0)
Yes 1.00 No(90% complete) 1.00 100 909.5 100.0 = 5891 (4063+1828+0)
Yes 1.00 No(99% complete) 1.00 100 1000.5 100.0 = 6681 (4469+2212+0)
Yes 1.00 Yes 1.10 100 1010.6 100.0 = 7448 (4514+2257+677)




Example 22: Real examples from 2005

Task: LEZ-BVT-BWL-LEZ

Notes: A fast 600k triangle (Ed Downham)


Task distance: 604.8km
- Leg 1 171.8km 28.4% of total
- Leg 2 235.4km 38.9% of total
- Leg 3 197.6km 32.7% of total
Convex hull (marked in cyan):
604.8km 100.0% of total
Longest FAI triangle (marked in yellow):
604.8km 100.0% of total

Example Scorings

Shape Factor, SF = 1.080 (basis: 28% Triangle)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 104 581.5 98.6 = 5132 (3140+1525+467)




Example 23: Real examples from 2005

Task: COM-HEU-LVE-MOS-COM

Notes: A very fast 500k (John Williams)


Task distance: 504.7km
- Leg 1 109.1km 21.6% of total
- Leg 2 132.0km 26.2% of total
- Leg 3 143.3km 28.4% of total
- Leg 4 120.3km 23.8% of total
Convex hull (marked in cyan):
287.3km 56.9% of total
Longest FAI triangle (marked in yellow):
n/a

Example Scorings

Shape Factor, SF = 0.845 (basis: Normal)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 100 504.7 150.1 = 4693 (2132+2134+427)




Example 24: Real examples from 2005

Task: BOO-CRE-STC-CVN-BOO

Notes: A fast 750k (Dave Watt). Although it is a double out-and-return, it gets a reasonable shape factor because they are in different directions so the convex hull is larger and he has flown over a bigger area.


Task distance: 755.5km
- Leg 1 218.1km 28.9% of total
- Leg 2 213.9km 28.3% of total
- Leg 3 156.9km 20.8% of total
- Leg 4 166.7km 22.1% of total
Convex hull (marked in cyan):
577.4km 76.4% of total
Longest FAI triangle (marked in yellow):
577.3km 76.4% of total

Example Scorings

Shape Factor, SF = 0.915 (basis: Normal)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 Yes 1.10 104 726.5 96.4 = 5354 (3324+1544+487)




Example 25: Real examples from 2005

Task: LAS-OKE-BUL-CRE-LAS

Notes: Just failed a 750k (Kay Draper)


Task distance: 758.9km
- Leg 1 211.7km 27.9% of total
- Leg 2 190.4km 25.1% of total
- Leg 3 167.8km 22.1% of total
- Leg 4 189.0km 24.9% of total
Convex hull (marked in cyan):
423.7km 55.8% of total
Longest FAI triangle (marked in yellow):
n/a

Example Scorings

Shape Factor, SF = 0.841 (basis: Normal)


Declared? DF Completed? CF Si Dh
(km)
Vh
(kph)
Points
Total (distance+speed+bonus)
Yes 1.00 No(98% complete) 1.00 106 702.4 74.0 = 3648 (2953+694+0)
